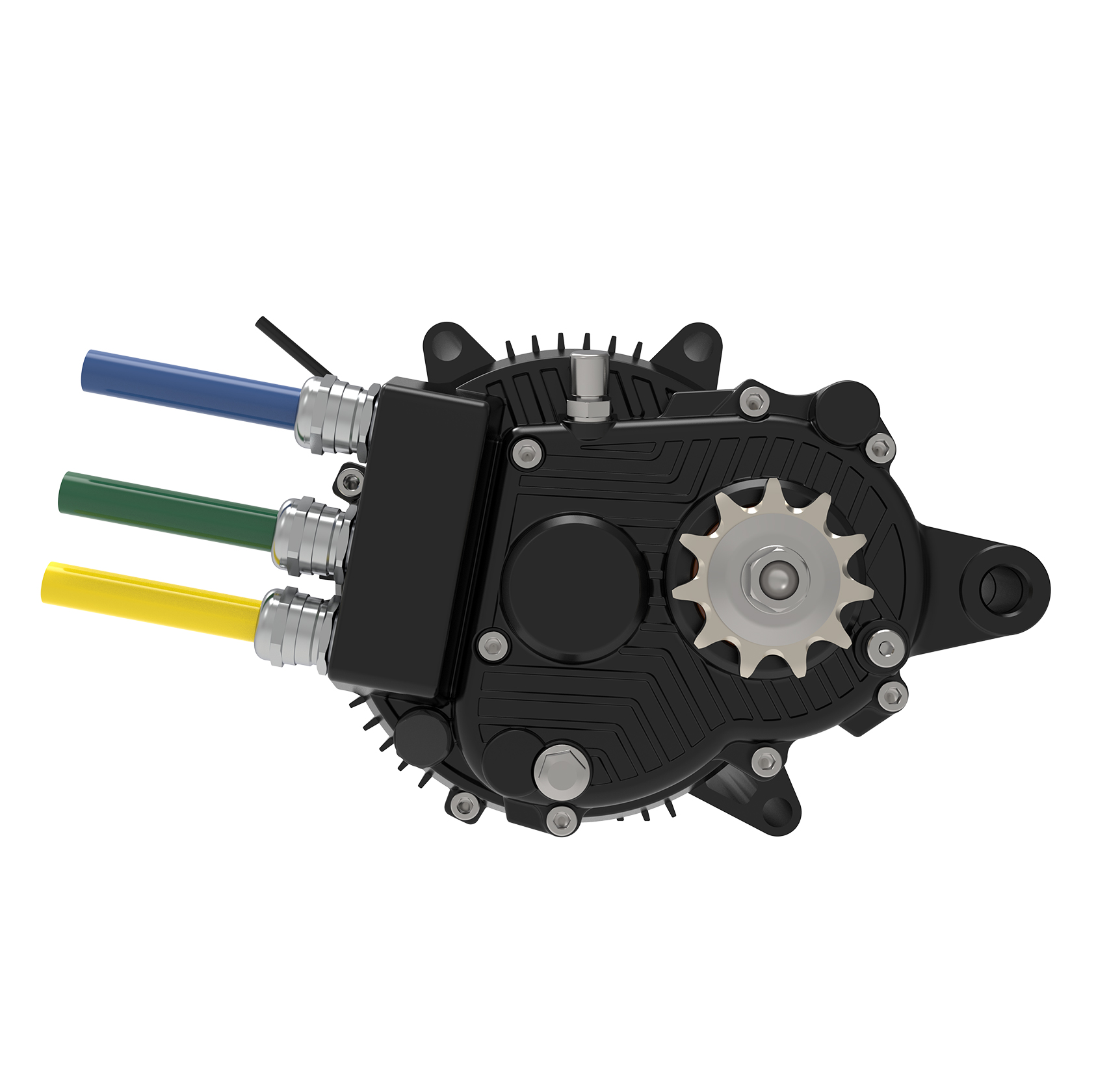

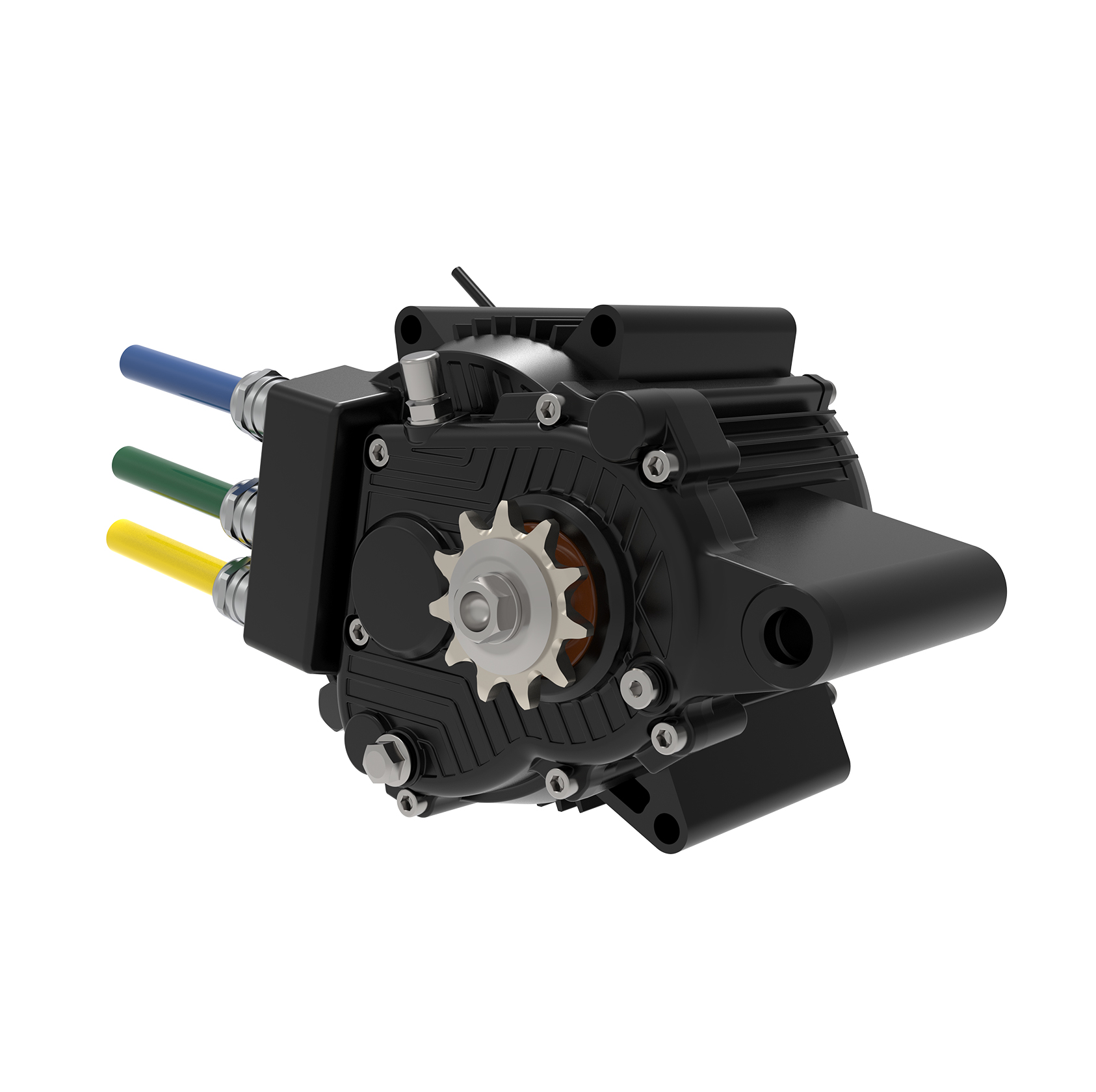

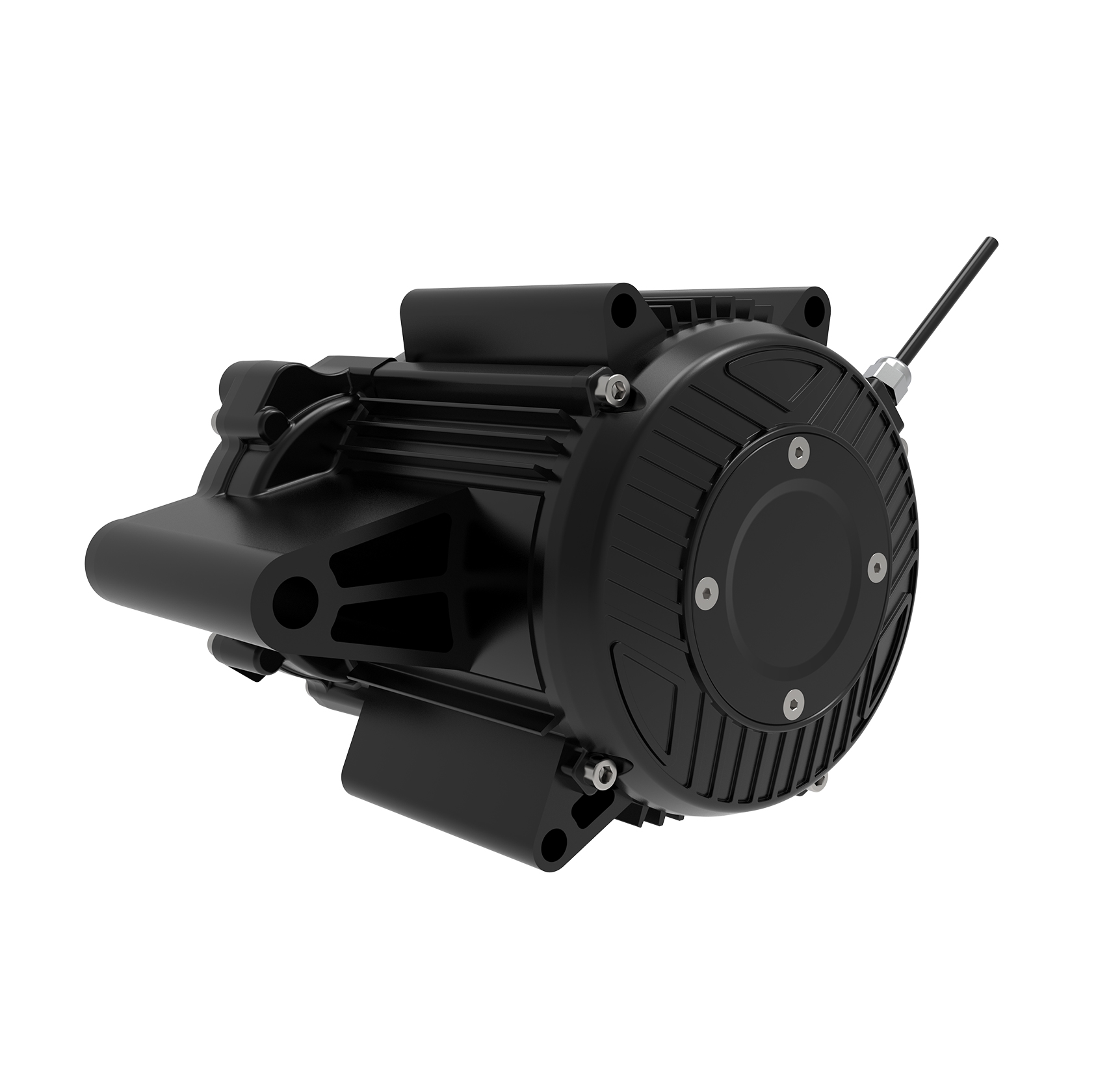

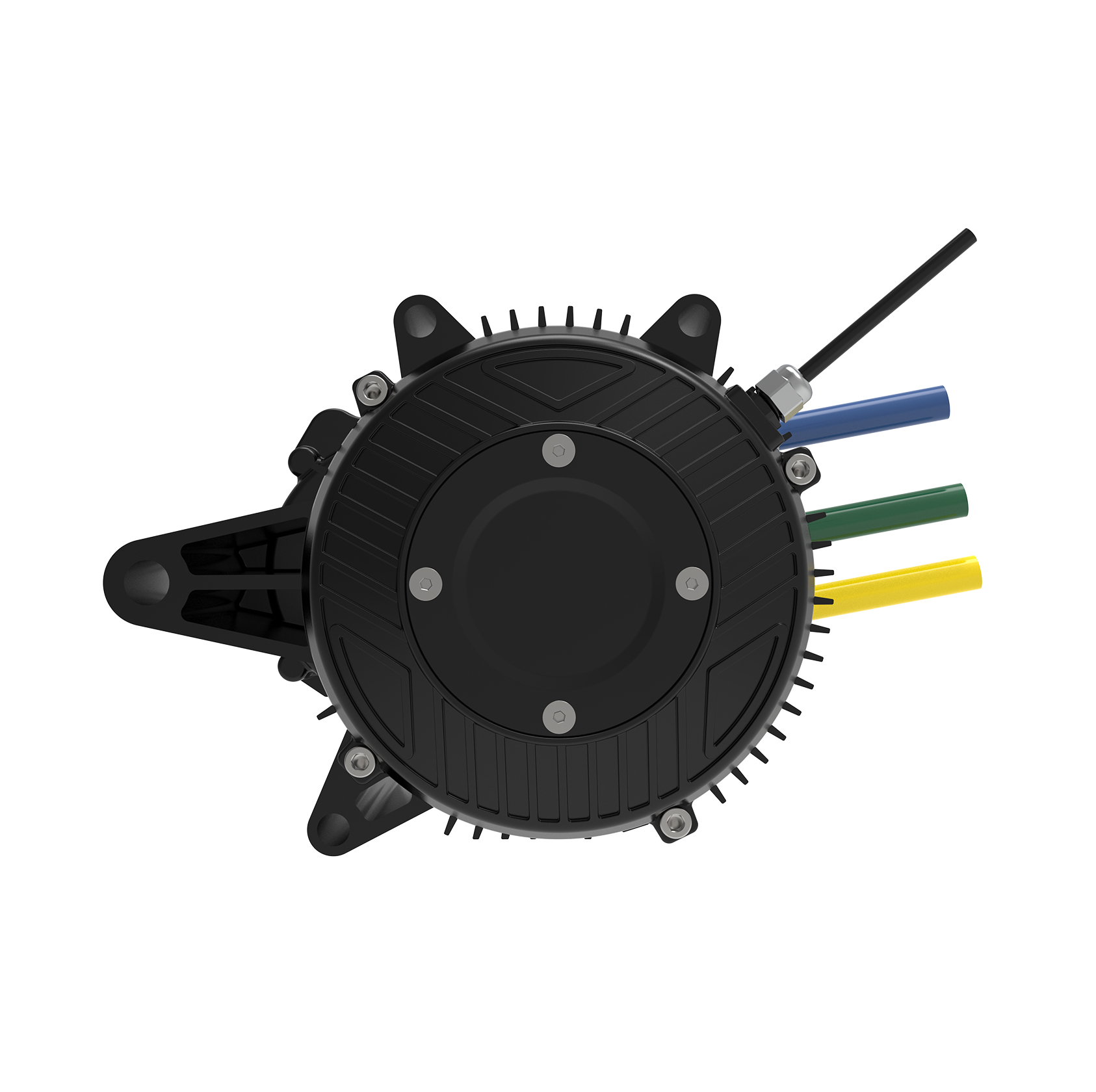

H57 mid-drive motor

JINYUXING
The world's leading electric light vehicle motor expert

Product parameters:

工作電壓（V）:  72-380

額定功率 （W）:  5000-18000

峰值功率 （W）:  7000-38000

額定轉速 （rpm）:  ≤14400

峰值扭矩 （N.m）:  70-85

峰值效率 （%）:  94-95

防護等級 （IP）:  67

絕緣等級:  H+（220-240℃）

傳感器類型:  磁編碼器

溫度檢測方式:  PTC/NTC

齒輪減速比:  2.941或定制

Working voltage:  72-380

Rated power（W）:  5000-18000

Peak power（W）:  7000-38000

Rated speed （rpm）:  ≤14400

Peak torque （N.m）:  70-85

Peak efficiency （%）:  94-95

Protection leve（IP）:  67

Insulation leve:  H+（220-240℃）

Sensor type:  Magnetic Encoder

Brake type:  PTC/NTC

Gear ratio:  2.941 or customized

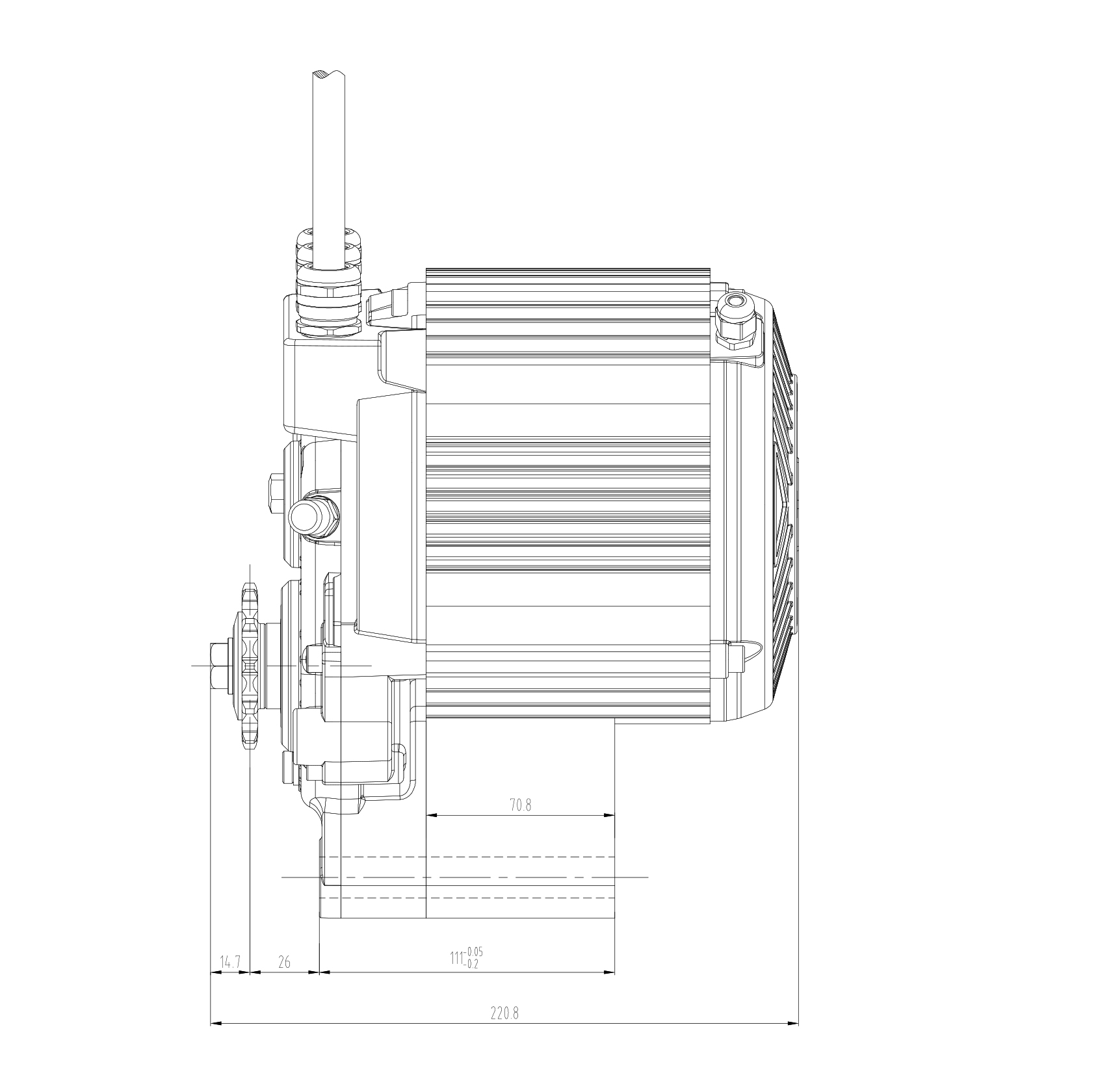

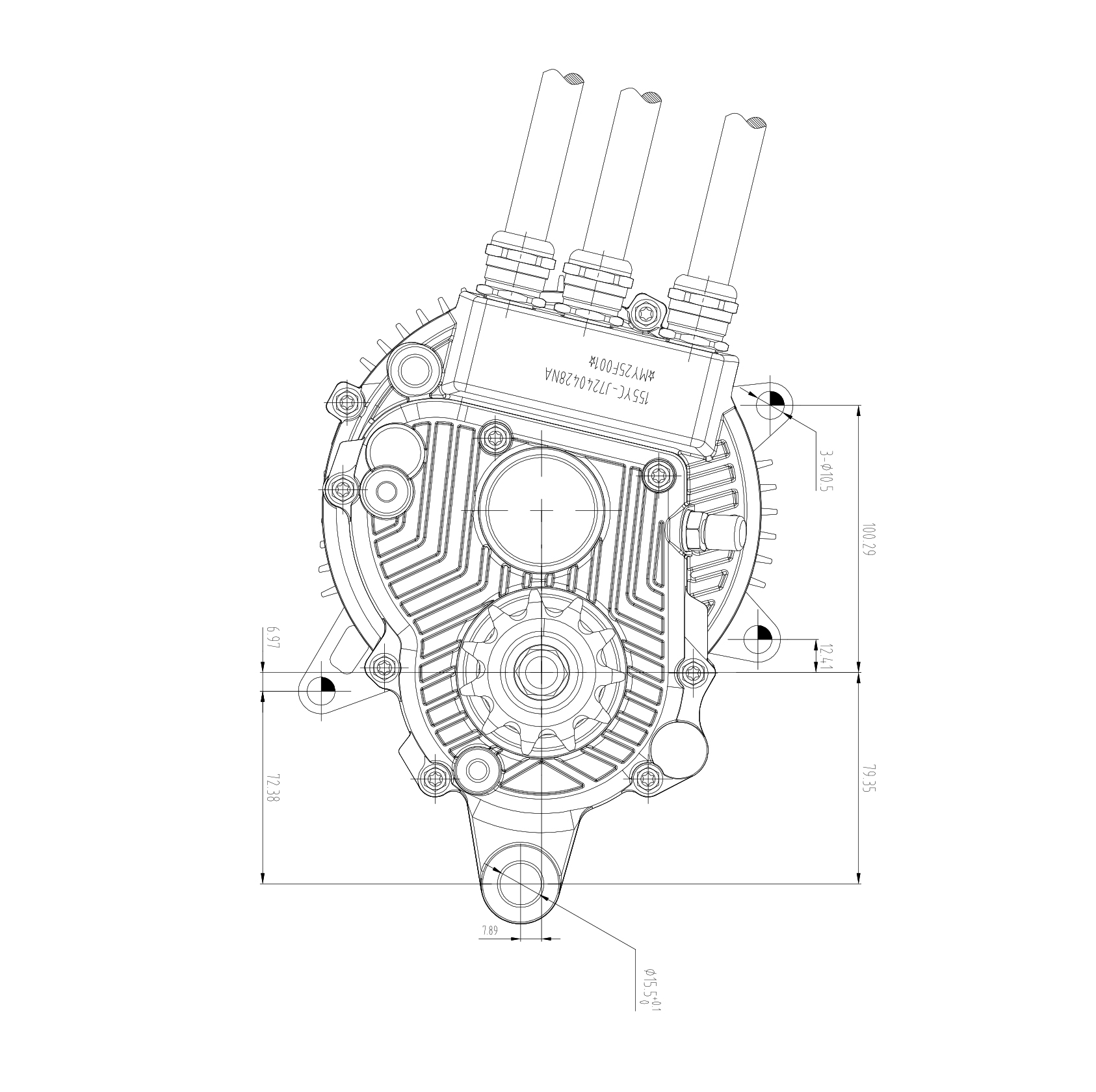

Product size:

安裝孔直徑:  4-M8

軸端外徑:  ?25(或定制）

內花鍵參數:  EXT15Z*1.5m*30R*6h

軸端至端蓋高度:  17.5(或定制）

輪廓最大外直徑:  ?230(或定制）

輪廓最大高度:  220.7

機殼吊耳安裝孔直徑:  3-?10.5

Installation hole diameter:  4-M8

Outer diameter of shaft end:  ?25 （or customized）

Internal spline parameters:  EXT15Z*1.5m*30R*6h

Height from shaft end to end cover:  17.5 (or customized）

Maximum outer diameter of contour:  ?230 (or customized）

Maximum height of contour:  220.7

Diameter of housing lifting lug mounting hole:  3-?10.5
