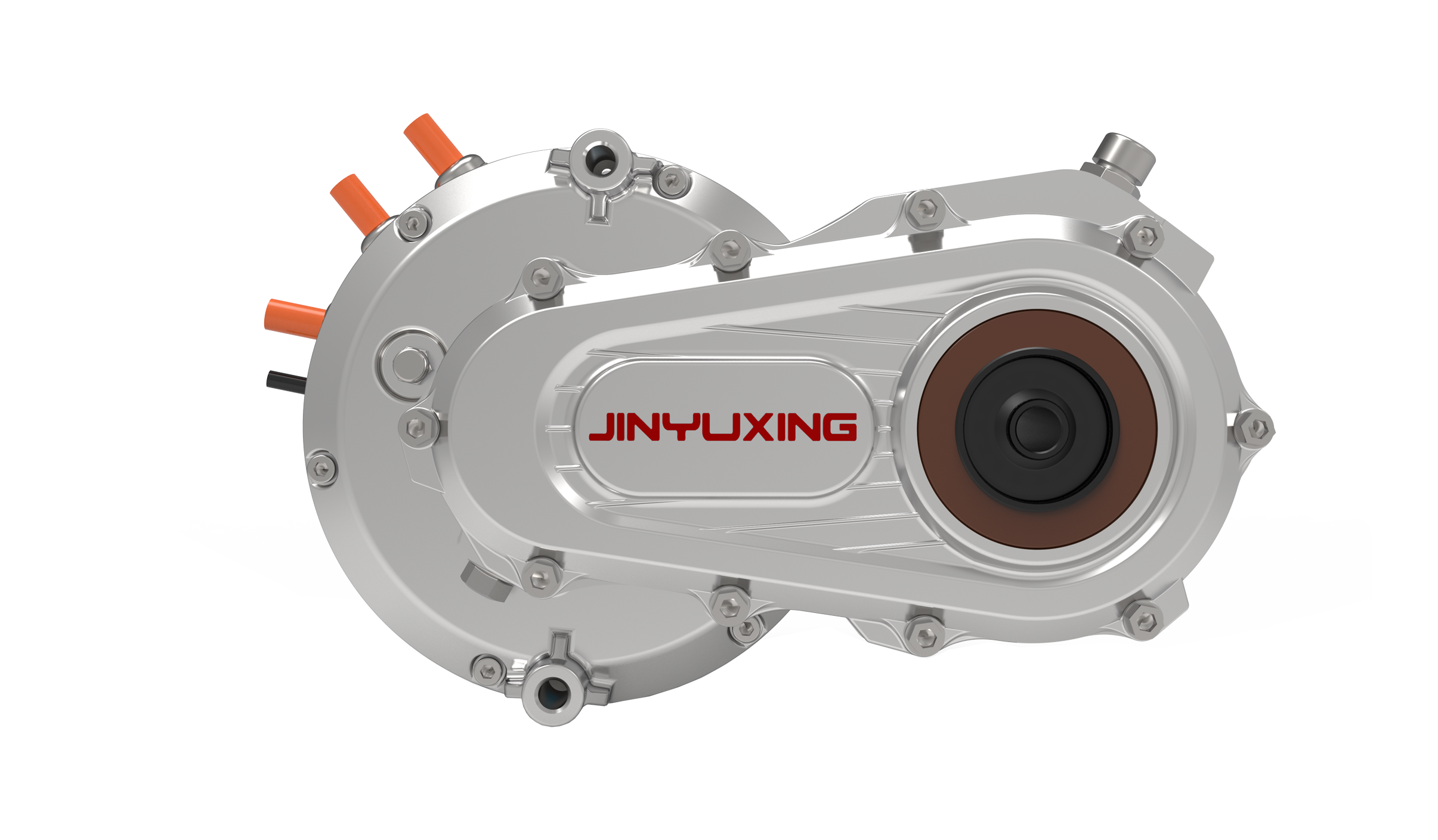

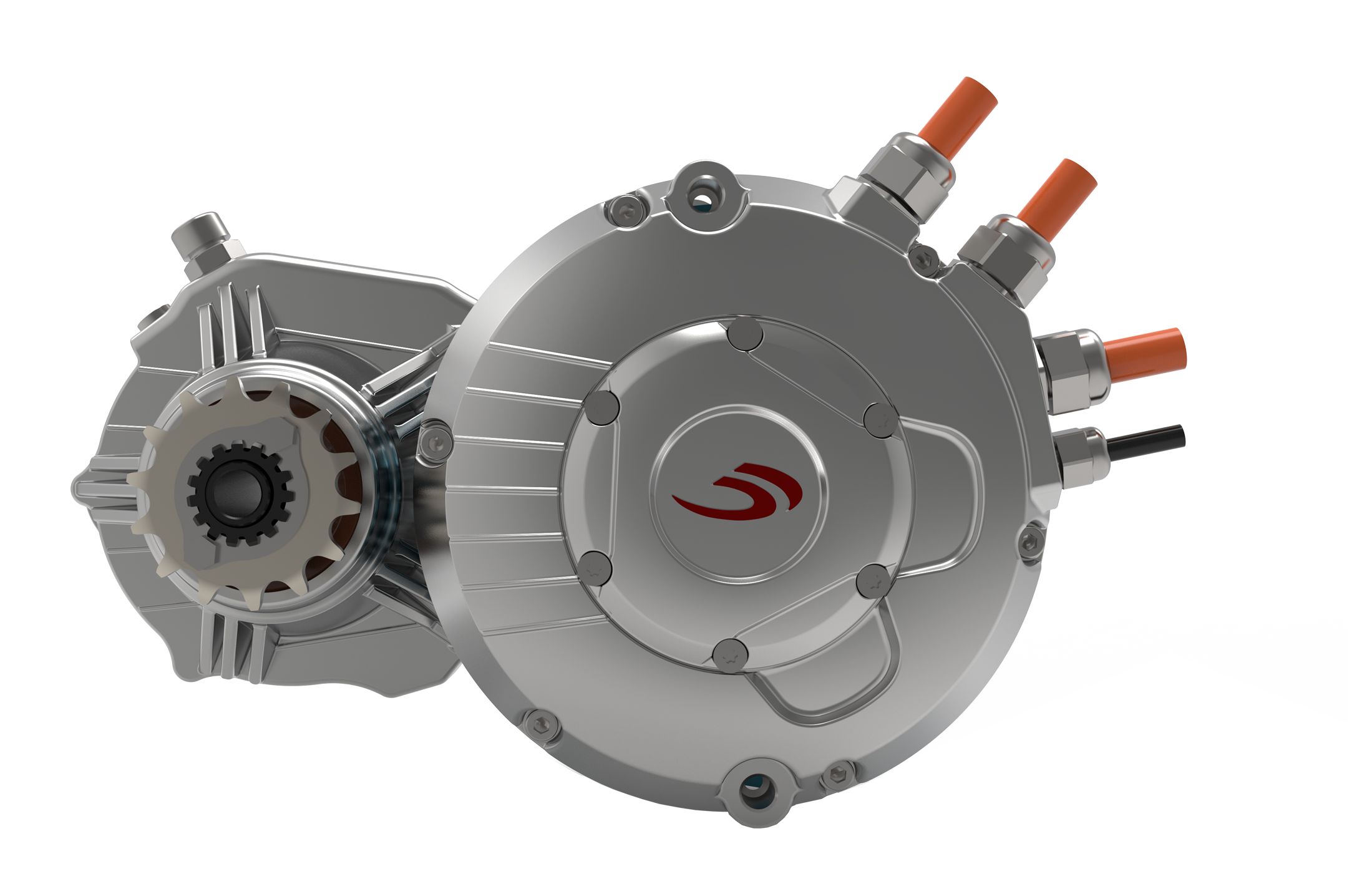

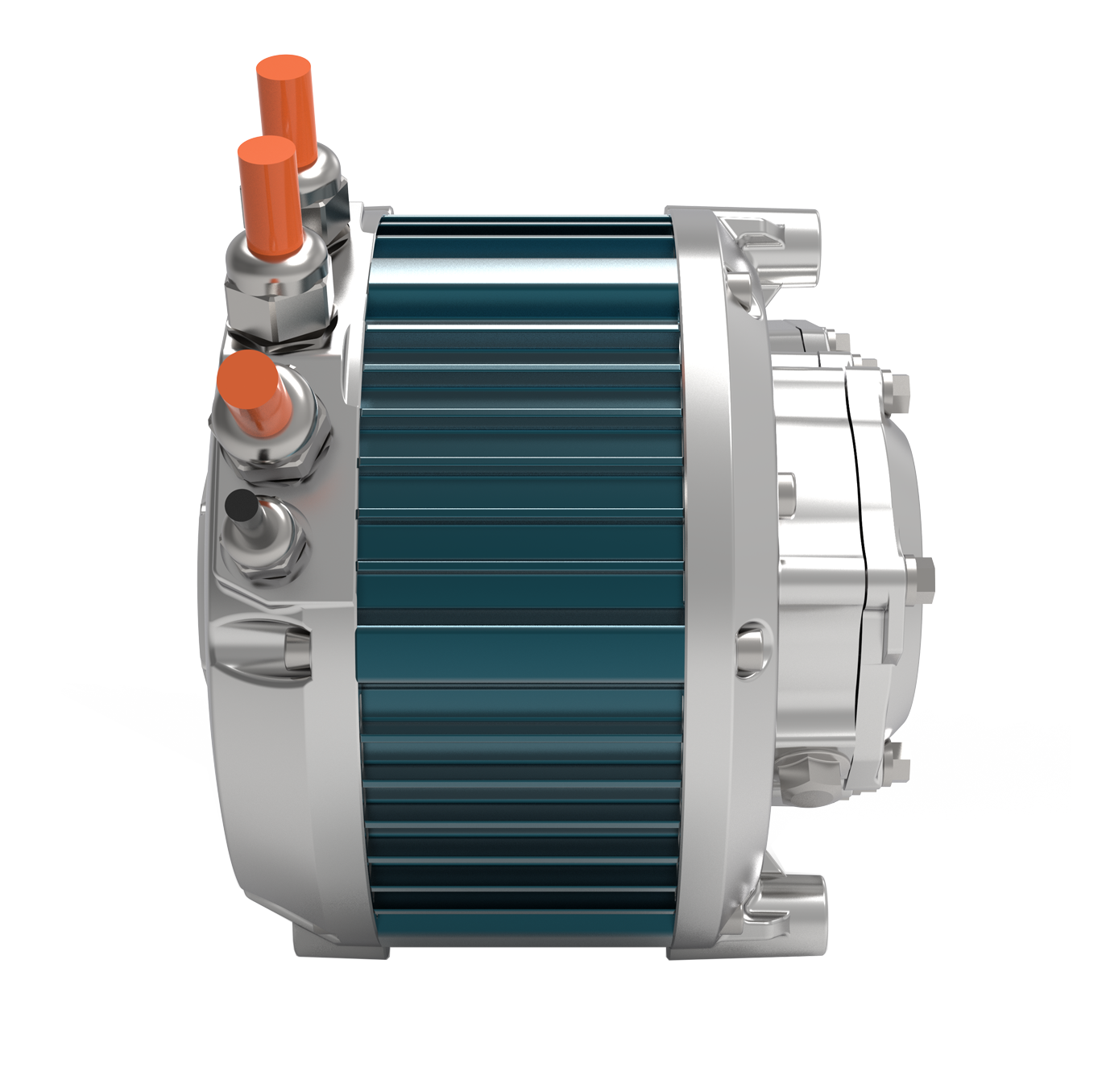

145 U-Type reducer motor

JINYUXING
The world's leading electric light vehicle motor expert

Product parameters:

?作電壓 （V）:  60-96

額定功率 （W）:  2000-4000

峰值轉速 （rpm）:  4000-7500

峰值功率 (W):  5000-7000

額定轉速 （rpm）:  3000-5000

峰值轉矩 （N.m):  25-40

峰值效率 （%）:  ≥90

防護等級 （IP）:  67

絕緣等級:  H

傳感器類型:  磁編碼器

溫度檢測?式:  PTC/NTC

?輪減速?:  3.158

Working voltage（V）:  60-96

Rated power（W）:  2000-4000

No-load speed （rpm）:  4000-7500

Peak power (W):  5000-7000

Rated speed （rpm）:  3000-5000

Peak torque （N.m):  25-40

Peak efficiency （%）:  ≥90

Protection level （IP）:  67

Insulation level:  H

Sensor type:  Magnetic Encoder

Temperature detection mode:  PTC/NTC

Gear ratio:  3.158
