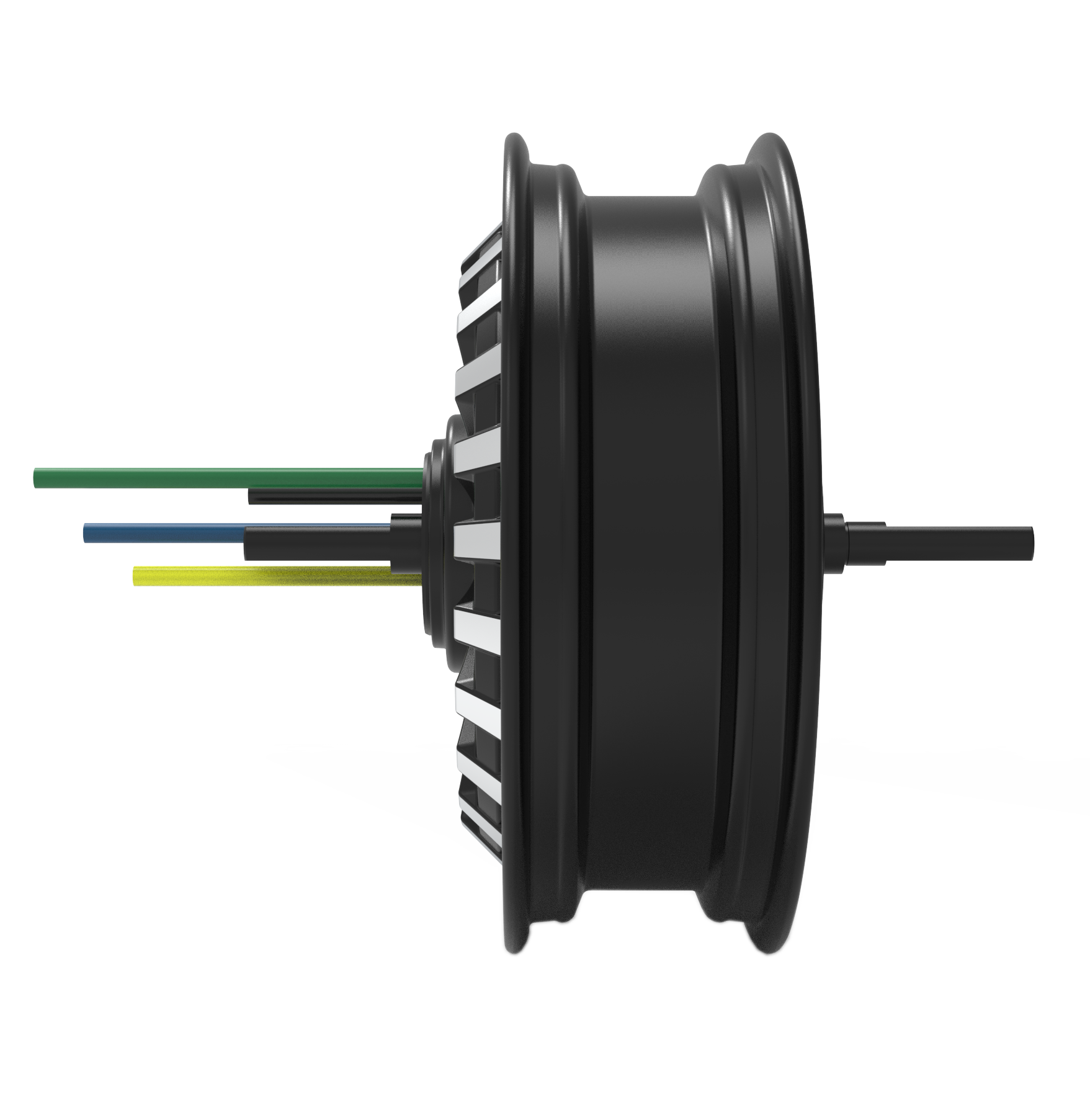

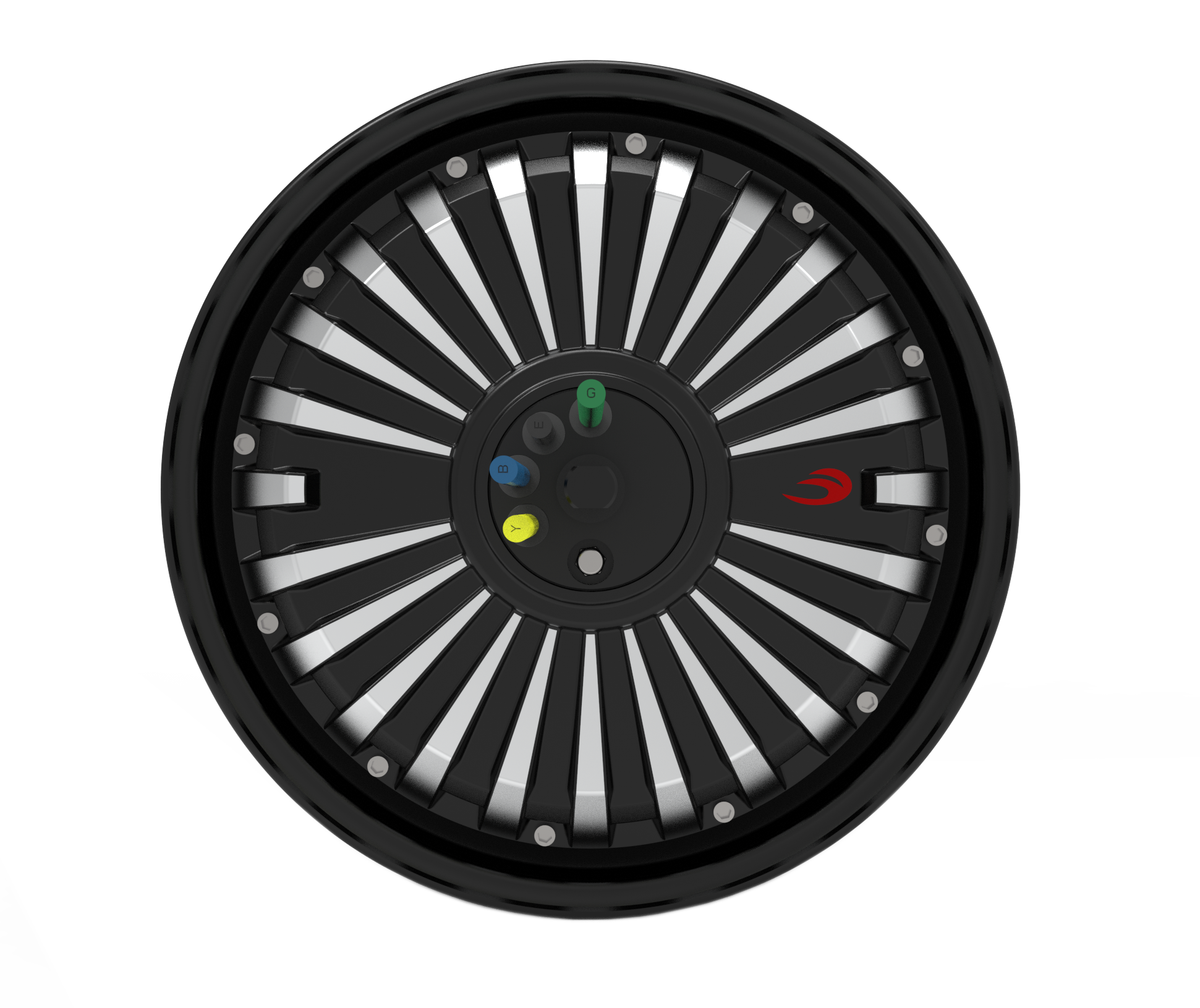

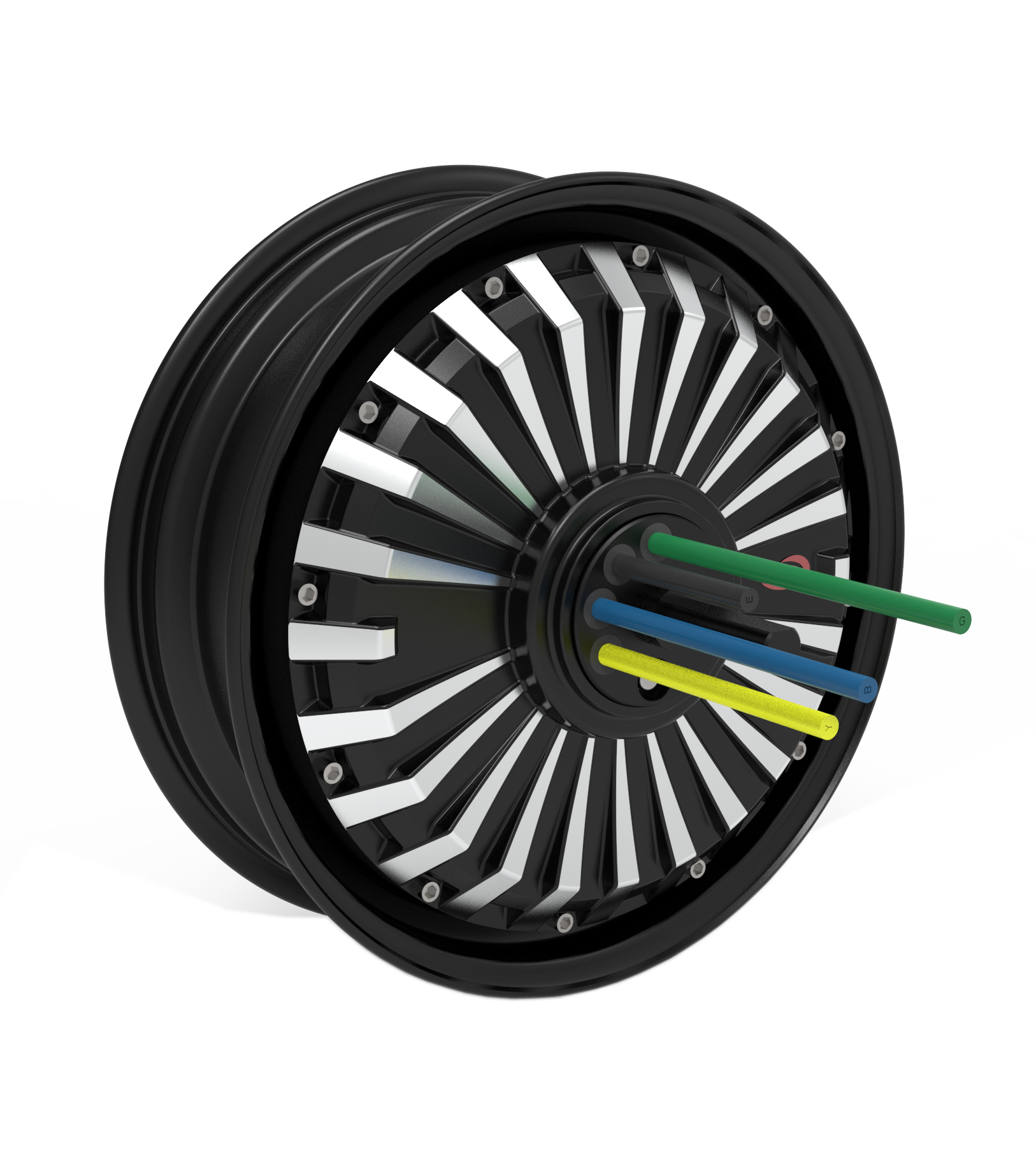

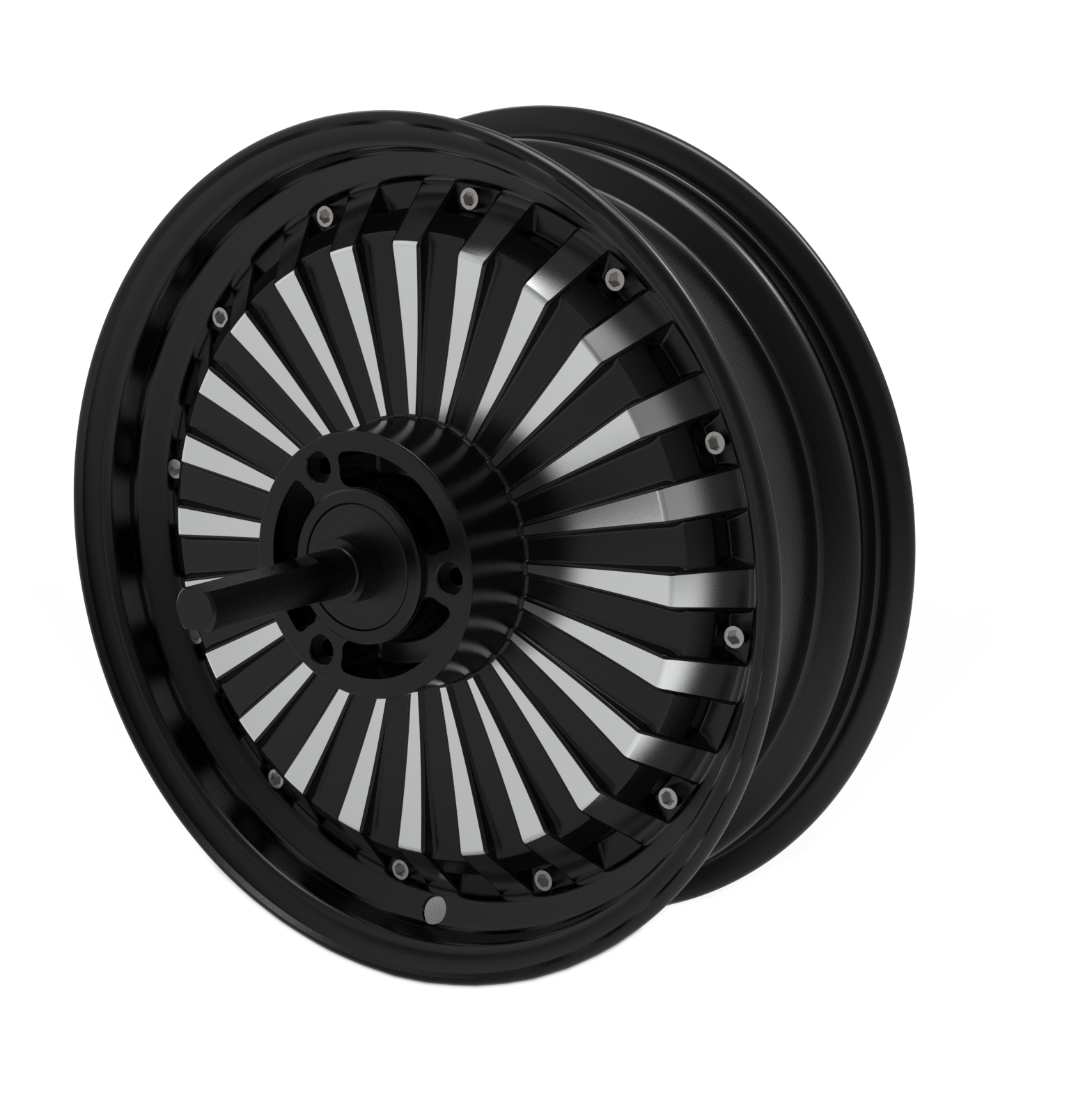

Motor with curved magnet

JINYUXING
The world's leading electric light vehicle motor expert

Product parameters:

工作電壓（V）:  72-96

額定功率（W）:  3000-30000

峰值功率（W）:  8000-50000

空載轉速（rpm）:  1000-2000

額定轉速（rpm）:  900-1800

峰值扭矩（N.m）:  250-350+

峰值效率（%）:  88

防護等級（IP）:  67

絕緣等級:  H

傳感器類型:  霍爾

制動器類型:  碟剎

最高行駛速度（Km/h）:  100-150+

Working voltage （V）:  72-96

Rated power （W）:  3000-30000

Peak power （W）:  8000-40000

No-load speed（rpm）:  1000-2000

Rated speed （rpm）:  900-1800

Peak torque （N.m）:  250-350+

Peak efficiency （%）:  88

Protection level （IP）:  67

Insulation level:  H

Sensor type:  Hall

Brake type:  Disc brake

Maximum running speed (Km/h):  100-150+

Product size:

輪輞寬度:  3/3.5

輪輞材質:  鋁

輪胎裝配位置尺寸:  304

帶輪胎外徑:

電機軸軸長:  300/330

電機軸開檔:  200/230

電機軸出現方式:  單體出線/分體出現

扁方尺寸:  14

電機軸螺紋尺寸:  M18

Rim width:  3/3.5

Rim material:  Aluminium

Mounting position size of type:  304

Outer diameter of tyre included:

Motor shaft length:  300/330

Motor shaft drop out size:  200/230

Motor shaft outlet mode:  Single unit outgoing line/mutiple units outgoing line

Shaft flat size:  14

Motor shaft thread size:  M18
